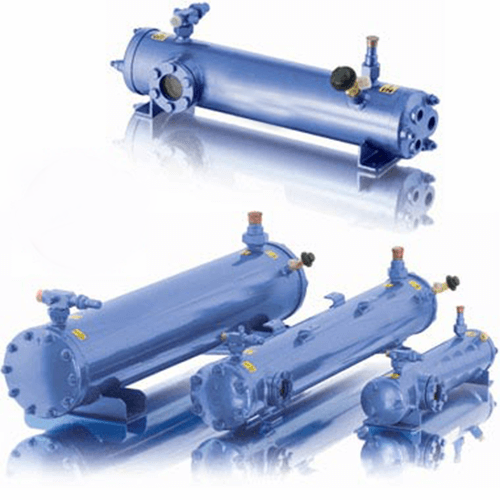

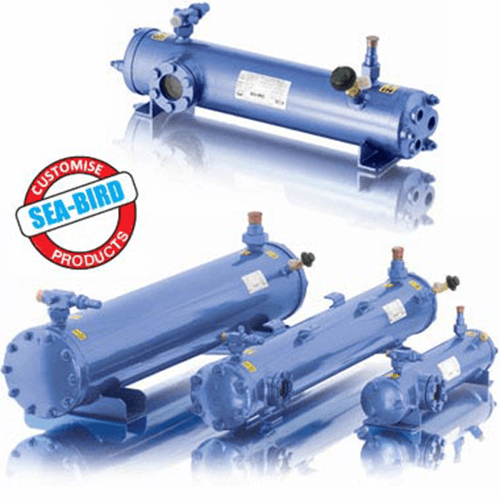

Shell And Tube Condensers
Shell And Tube Condensers

R22, R134a, R404A, R407C, R507, R410a, R508B

Capacity from 1.3 tons to 221 tons in two pass and 1.1 tons to 176 tons in four pass condenser

Heat-exchanger tubes: made of copper or copper nickel (Seawater-resistant design) with newly developed tube geometric and low fouling profile on the coolant side.

Shell and punched plates are made of boiler plate

Suitable for (H) CFC/HFC refrigerants

Maximum allowable pressure / allowable temperature.

Refrigerant side : 33 bar / -100C to 1200C

Coolant side : 10 bar / -100 (anti-freezing-point) to 950C

Detachable, permits mechanical cleaning of the pipes connecting and baffle side are interchangeably

Drain plugs

Seawater resistant design (optional):

Copper-Nickel Tube, Plastic Coated End Cover

Options :

  • Sight glass
  • Pressure Relief Valve
  • Inlet Rotolock Valve
Dealership Custom Design
