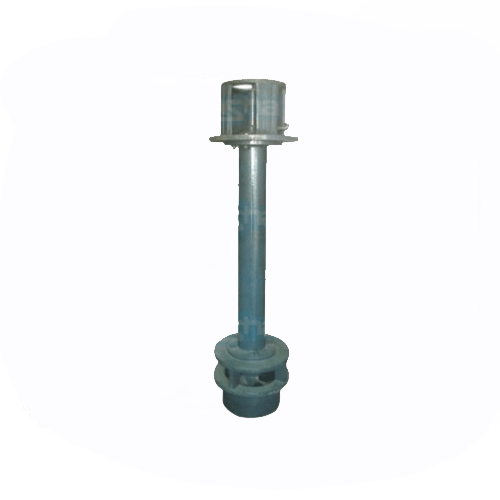

Mono Block / Coupled Brine Agitator:

Made up of heavy duty M.S. Pipe in which a 36 mm shaft is fitted with bush at both ends. These agitators are fitted with 12”/14” dia. C.I. Impeller/ fan and the capacity of the agitator can be varied by changing the degree of Impeller/ fan blades.

These are directly driven by motor. These comes in different models suitable for various depth of tanks as per customer's requirements.

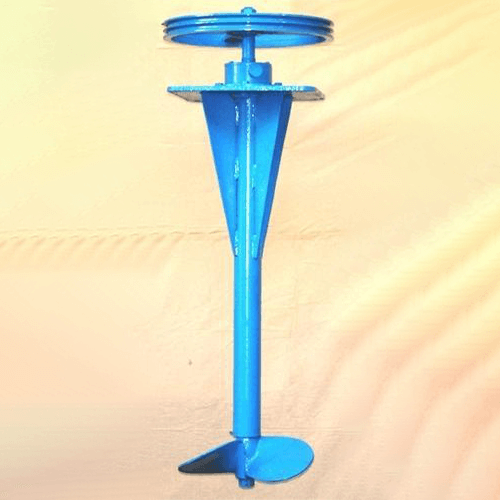

V Belt Driven Brine Agitator:

Made up of heavy duty M.S. Pipe in which a 45 mm Shaft is fitted. The shafts has gunmetal bush at the fan end and taper roller bearing at the pulley end and are fitted with various sizes of C.I. fan/ impeller. i.e. 8”, 12”, 16”, 18” & 20” according to capacity of the ice plant.

These agitators come in different models suitable for various depths of tank or as per customer requirement.
