Safety Relief Valves

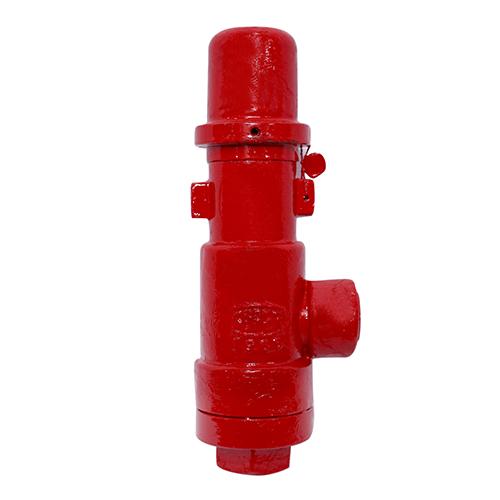

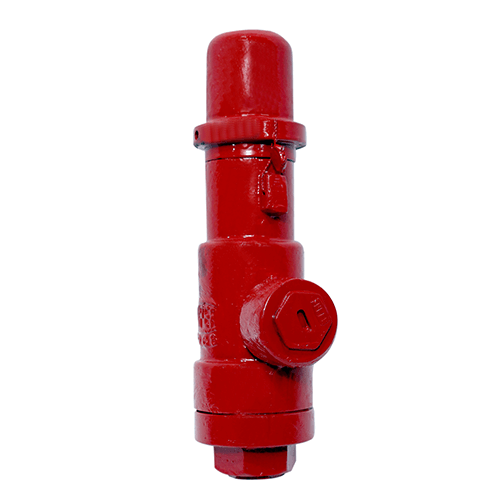

CISRS(CAST IRON SAFETY RELIEF VALVES SCREWED CONNECTION)
CISRS(CAST IRON SAFETY RELIEF VALVES SCREWED CONNECTION)
Sizes: (Inlet and outlet) BSPTM
  • 15 MM X20 MM
  • 15 MM X 25 MM
  • 20 MM X 20 MM
  • 20 MM X 25 MM
  • 25 MM X 25 MM

Features

Body: Closed grain cast iron

  • Tamper resistant
  • Accurately set and sealed by qualified technicians
  • Available in angle way version
  • Safe working pressure 400 psig (27 bar)
  • Temperature range: -60°F to +240°F ( -51°C to +116°C)
  • Pressure rating: 150 to 350 PSIG (10.4 to 24 bar)
  • Suitable for R717 Ammonia, R744 (CO2) HCFC & HFC
